Artificial Neural Networks

"Artificial neural networks (ANNs) are inspired by the structure and function of the human brain. They consist of interconnected layers of artificial neurons, which process information in a similar way to biological neurons. Unlike traditional programming, ANNs learn through training on large datasets. By adjusting the connections between these artificial neurons, they can identify complex patterns and relationships within the data. This makes them powerful tools for tasks like image recognition, speech translation, and even creative text generation."- Gemini 2024

Neural Network Evolution: From Feedforward to Modern Architectures

Artificial neural networks (ANNs) were originally inspired by our understanding of biological neural networks, though they are a simplified abstraction rather than a direct mimicry of brain function. While biological neurons communicate through complex electrochemical signals across synapses, artificial neurons process numerical values through mathematical functions. Although both biological and artificial networks process information through connected nodes, digital computers (including those running ANNs) operate using transistor-based logic gates, which function quite differently from biological neural systems.

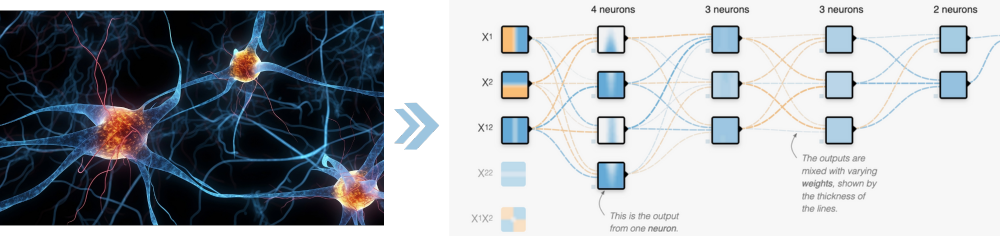

Screenshot from TensorFlow Playground

Progression of Neural Network Models
1. Early Days and Feedforward Networks (1950s-1980s)

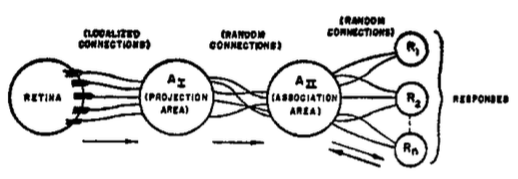

  • Perceptron (1958): First artificial neural network capable of learning, designed by Frank Rosenblatt
  • Multilayer Perceptron (MLP) (1960s): Introduced multiple layers of neurons to solve non-linear problems
  • Backpropagation algorithm (1986): Crucial breakthrough for efficient training of multi-layered networks
2. Convolutional Neural Networks (CNNs) (1980s-present)

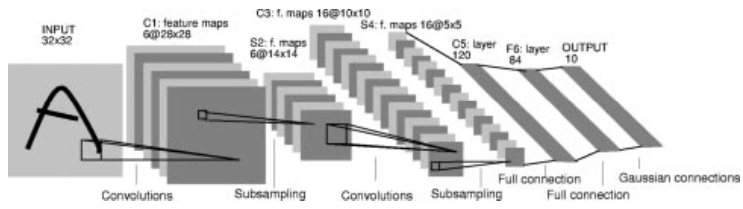

  • LeNet-5 (1998): One of the first CNNs for image recognition
  • AlexNet (2012): Revolutionized image recognition with deep CNN architecture
  • Key concepts: Convolutional filters, pooling layers, and shared weights
3. Recurrent Neural Networks (RNNs) (1980s-present)
  • Designed to handle sequential data with internal memory

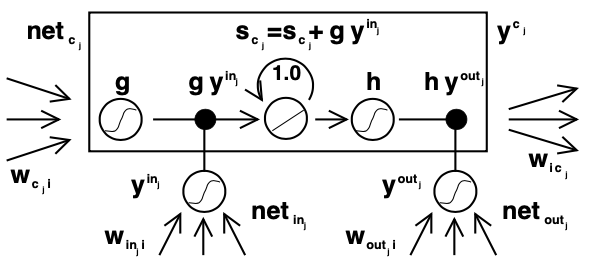

  • Long Short-Term Memory (LSTM) (1997): Addressed vanishing gradient problems
  • Gated Recurrent Unit (GRU) (2014): Further improvement in RNN performance
4. Deep Learning Revolution (2000s-2010s)
  • Deep Belief Networks (DBNs): Rekindled interest in deep learning

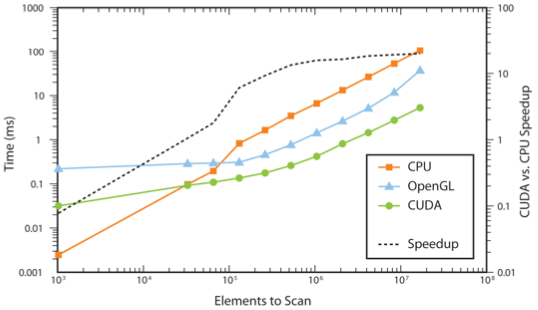

  • Introduction of GPU Computing: Enabled large-scale training of deep networks
  • VGGNet, GoogLeNet, ResNet: More complex and deeper architectures
5. Generative Models (2010s-present)

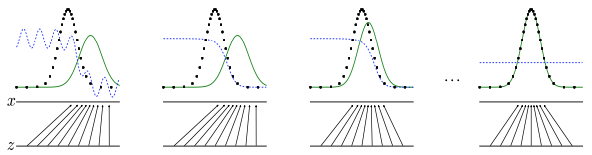

  • Generative Adversarial Networks (GANs) (2014): Generator and discriminator competing to learn data distribution
  • Variational Autoencoders (VAEs): Probabilistic generative models
  • Applications: Image generation, text synthesis, and data augmentation
6. Transformer Networks and NLP Innovations (2017-present)
  • "Attention is All You Need" paper introduced transformers
  • BERT (2018): Bidirectional Encoder Representations from Transformers
  • Large Language Models: GPT-3, GPT-4, PaLM, etc.
7. Current Trends and Beyond (2020s-present)
  • Multimodal Models: CLIP, DALL-E integrating text and images
  • Efficient Architectures: DistilBERT, TinyML, EfficientNet, MobileNet
  • Graph Neural Networks (GNNs): Processing graph-like structures

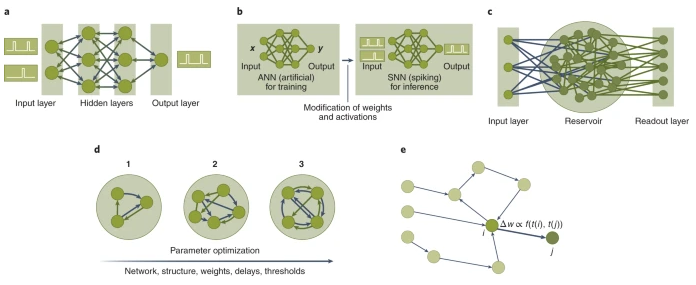

  • Neuromorphic Computing: Hardware designs inspired by biological neural networks
  • Focus on ethics, interpretability, and addressing biases in AI systems
Architecture

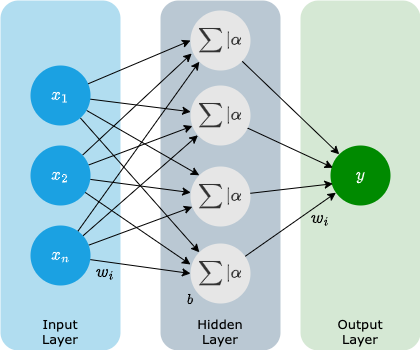

Artificial Neural Network
Structure
  • Input Layer: Receives raw data
  • Hidden Layer(s): Process information
  • Output Layer: Produces final result
Components
  • Neurons (Nodes)
  • Weights and Biases
  • Activation Functions
Processing
  1. Forward Propagation
    • Input data fed into input layer
    • Weighted sum calculation
    • Bias addition
    • Activation function application
  2. Output Generation
  3. Loss Function Calculation
  4. Backpropagation
    • Calculate gradients
    • Update weights and biases
  5. Iteration (multiple epochs)
Training
  • Supervised learning with labeled data
  • Optimization algorithms (e.g., Gradient Descent)
  • Hyperparameter tuning
Example Implementation - Image Classification

Classifying handwritten digits using the MNIST dataset, which is a common benchmark dataset in machine learning.

import numpy as np
from sklearn.datasets import fetch_openml
from sklearn.model_selection import train_test_split
from sklearn.preprocessing import StandardScaler
import torch
import torch.nn as nn
import torch.optim as optim
from torch.utils.data import DataLoader, TensorDataset
import matplotlib.pyplot as plt

# Set random seeds for reproducibility
np.random.seed(42)
torch.manual_seed(42)

class FeedForwardNet(nn.Module):
    def __init__(self, input_size, hidden_size, num_classes):
        super(FeedForwardNet, self).__init__()
        self.layer1 = nn.Linear(input_size, hidden_size)
        self.relu = nn.ReLU()
        self.layer2 = nn.Linear(hidden_size, hidden_size)
        self.layer3 = nn.Linear(hidden_size, num_classes)
        self.softmax = nn.Softmax(dim=1)

    def forward(self, x):
        x = self.layer1(x)
        x = self.relu(x)
        x = self.layer2(x)
        x = self.relu(x)
        x = self.layer3(x)
        x = self.softmax(x)
        return x

def load_mnist_data():
    # Load MNIST dataset
    print("Loading MNIST dataset...")
    X, y = fetch_openml('mnist_784', version=1, return_X_y=True, as_frame=False)

    # Convert data to float32 and scale to [0,1]
    X = X.astype('float32') / 255.0
    y = y.astype('int32')

    # Split the data
    X_train, X_test, y_train, y_test = train_test_split(
        X, y, test_size=0.2, random_state=42
    )

    # Convert to PyTorch tensors
    X_train = torch.FloatTensor(X_train)
    X_test = torch.FloatTensor(X_test)
    y_train = torch.LongTensor(y_train.astype(int))
    y_test = torch.LongTensor(y_test.astype(int))

    return X_train, X_test, y_train, y_test

def train_model(model, train_loader, criterion, optimizer, num_epochs, device):
    model.train()
    train_losses = []

    for epoch in range(num_epochs):
        running_loss = 0.0
        for i, (inputs, labels) in enumerate(train_loader):
            inputs, labels = inputs.to(device), labels.to(device)

            # Zero the gradients
            optimizer.zero_grad()

            # Forward pass
            outputs = model(inputs)
            loss = criterion(outputs, labels)

            # Backward pass and optimize
            loss.backward()
            optimizer.step()

            running_loss += loss.item()

        # Calculate average loss for the epoch
        epoch_loss = running_loss / len(train_loader)
        train_losses.append(epoch_loss)

        if (epoch + 1) % 5 == 0:
            print(f'Epoch [{epoch+1}/{num_epochs}], Loss: {epoch_loss:.4f}')

    return train_losses

def evaluate_model(model, test_loader, device):
    model.eval()
    correct = 0
    total = 0

    with torch.no_grad():
        for inputs, labels in test_loader:
            inputs, labels = inputs.to(device), labels.to(device)
            outputs = model(inputs)
            _, predicted = torch.max(outputs.data, 1)
            total += labels.size(0)
            correct += (predicted == labels).sum().item()

    accuracy = 100 * correct / total
    return accuracy

def main():
    # Parameters
    input_size = 784  # 28x28 pixels
    hidden_size = 256
    num_classes = 10
    num_epochs = 20
    batch_size = 100
    learning_rate = 0.001

    # Device configuration
    device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')

    # Load and prepare data
    X_train, X_test, y_train, y_test = load_mnist_data()

    # Create data loaders
    train_dataset = TensorDataset(X_train, y_train)
    test_dataset = TensorDataset(X_test, y_test)
    train_loader = DataLoader(train_dataset, batch_size=batch_size, shuffle=True)
    test_loader = DataLoader(test_dataset, batch_size=batch_size, shuffle=False)

    # Initialize the model
    model = FeedForwardNet(input_size, hidden_size, num_classes).to(device)

    # Loss and optimizer
    criterion = nn.CrossEntropyLoss()
    optimizer = optim.Adam(model.parameters(), lr=learning_rate)

    # Train the model
    print("Training the model...")
    train_losses = train_model(model, train_loader, criterion, optimizer, num_epochs, device)

    # Evaluate the model
    accuracy = evaluate_model(model, test_loader, device)
    print(f'Test Accuracy: {accuracy:.2f}%')

    # Plot training loss
    plt.figure(figsize=(10, 6))
    plt.plot(train_losses)
    plt.title('Training Loss Over Time')
    plt.xlabel('Epoch')
    plt.ylabel('Loss')
    plt.show()

if __name__ == "__main__":
    main()


import tensorflow as tf

# load data as train/test sets of sizes [60,000, 10,000]
# x values are input images, y values are output labels
(x_train, y_train), (x_test, y_test) = tf.keras.datasets.mnist.load_data()

# normalize pixel values to [0, 1] range to improve learning
x_train, x_test = x_train/255.0, x_test/255.0

# Flatten images to 1D vectors for neural network input layer
x_train = x_train.reshape(len(x_train), 28 * 28)
x_test = x_test.reshape(len(x_test), 28 * 28)

# Convert target labels to one-hot encoded vectors
y_train = tf.keras.utils.to_categorical(y_train, 10)
y_test = tf.keras.utils.to_categorical(y_test, 10)

# Simple sequential model for multi-class classification
# - hidden layer of 128 neurons with ReLU activation
# - output layer of 10 neurons (10 digits) with softmax activation
model = tf.keras.models.Sequential([
tf.keras.layers.Dense(128, activation='relu'),
tf.keras.layers.Dense(10, activation='softmax')
])

# Compile model using CategoricalCrossentropy loss
# Use stochastic gradient descent (SGD) optimizer
model.compile(loss = tf.keras.losses.CategoricalCrossentropy(),
          optimizer = tf.keras.optimizers.SGD(learning_rate=0.01),
          metrics = ['accuracy']
)

# train the model
model.fit(x_train, y_train,
      epochs=10, batch_size=32,
      validation_data=(x_test, y_test),
)

# evaluation the model
test_loss, test_acc = model.evaluate(x_test, y_test)
print('Test Loss:', test_loss)
print('Test accuracy:', test_acc)


Implementation Details

Network Architectures Compared
PyTorch Network Architecture
  • Input layer (784 neurons - flattened 28x28 images)
  • Two hidden layers with ReLU activation (256 neurons each)
  • Output layer with softmax activation (10 classes)
TensorFlow Network Architecture
  • Input layer (784 neurons - flattened 28x28 images)
  • One hidden layer with ReLU activation (128 neurons)
  • Output layer with softmax activation (10 classes)
Structural Differences

Notably, there is a structural difference between the two implementations:

  • The PyTorch version has two hidden layers of 256 neurons each
  • The TensorFlow version has one hidden layer of 128 neurons

This is a meaningful difference that affects model capacity and performance. The PyTorch implementation has more parameters and therefore greater capacity to learn complex patterns, while the TensorFlow implementation is simpler and may train faster.

PyTorch vs TensorFlow Implementation Comparison
Aspect PyTorch TensorFlow
Model Definition Object-oriented with nn.Module Sequential API
Training Loop Explicit training loop with more control Built-in model.fit() method
Memory Management Manual device management (to/from GPU) Automatic device placement
Debugging Easier to debug with Python-native feel TensorBoard integration for visualization
Key Concepts Explained
Multi-class Classification

A problem where the model must classify input into one of several classes. In MNIST, we classify images into digits 0-9. The output layer uses softmax activation to produce probabilities for each class.

Learn More
Activation Functions
  • ReLU (Rectified Linear Unit): Converts negative values to zero, allowing for better gradient flow during training
  • Softmax: Converts raw outputs to probabilities that sum to 1, ideal for classification tasks
Learn More
Optimizers
  • Adam (PyTorch Implementation): Adaptive optimizer that combines RMSprop and momentum. Generally provides faster convergence and better performance than SGD, especially for deep networks, but uses more memory.
  • SGD (TensorFlow Implementation): Basic gradient descent with a fixed learning rate. Simpler and uses less memory, but may require more tuning to achieve optimal performance. Good for understanding the basic optimization process.

This difference in optimizers may impact training speed and final model performance - Adam typically converges faster but SGD might provide better generalization in some cases.

Learn More
Loss Functions

Categorical Cross Entropy: Measures the difference between predicted probabilities and actual classes. Optimal for multi-class classification tasks like MNIST.

Learn More
Expected Performance Metrics
Hyperparameter Tuning Guidelines
Hyperparameter Range Impact
Learning Rate 0.0001 - 0.01 Higher values train faster but may be unstable
Batch Size 32 - 256 Larger batches use more memory but train faster
Hidden Layer Size 64 - 512 Larger networks can learn more complex patterns
Number of Epochs 10 - 50 More epochs allow better convergence but risk overfitting
Regularization Techniques
Visualization Techniques
Model Complexity Trade-offs
Simple Model (1 hidden layer, 128 neurons)
  • Pros: Fast training, less memory, less likely to overfit
  • Cons: May underfit complex patterns
Complex Model (3+ hidden layers, 256+ neurons)
  • Pros: Can learn more complex patterns
  • Cons: Slower training, more memory, prone to overfitting

For MNIST, a simple model is often sufficient. Consider complex models only if simple ones underperform.
