Predicting Energy Consumption

"Regression analysis is a statistical method used to model the relationship between a dependent variable (e.g., energy consumption) and one or more independent variables (e.g., temperature, time of day, occupancy). It's a powerful tool for predicting future energy consumption based on historical data and understanding the factors that influence it."- Gemini 2024

Project Overview
Problem Statement

Can we predict future household energy consumption from historic data?

Dataset

This project uses the UCI Machine Learning Repository's Household Electric Power Consumption Dataset

The dataset contains 2,075,259 measurements of energy use from a single house.

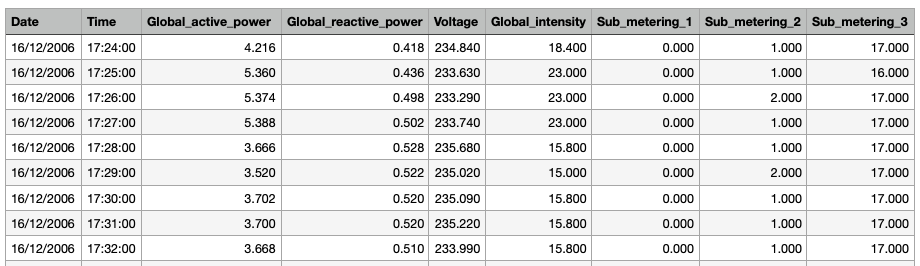

Data Preview

This project demonstrates regression analysis for energy consumption prediction.

Background
  1. Core Concept
    • Statistical method to model relationships between variables
    • Predicts a dependent variable (target) based on independent variables (features)
    • Shows both correlation and direction of relationships
  2. Types of Regression
    Simple Linear:

    One feature → one target

    y = mx + b

    where y is target, x is feature, m is slope, b is intercept

    Multiple Linear:

    Multiple features → one target

    y = b0 + b1x1 + b2x2 + ... + bnxn

    Polynomial:

    Nonlinear relationships

    y = b0 + b1x + b2x² + b3x³

    Other Types:
    • Logistic (for classification)
    • Ridge (L2 regularization)
    • Lasso (L1 regularization)
    • Random Forest (ensemble method)
  3. Key Components
    • Dependent Variable - What you're trying to predict
    • Independent Variables - Features used for prediction
    • Coefficients - Weights showing feature importance
    • Residuals - Difference between predicted and actual values
    • R-squared - Measure of model fit (0 to 1)
Approach
  1. Data Collection & Preprocessing
    • Download the dataset from UCI ML Repository:
    • Load data to Pandas and remove rows with null values
  2. Feature Extraction/Selection
    • Observation: some features are related

      P = V × I

      Where:

      1. P is Active Power (Global_active_power)
      2. V is Voltage
      3. I is Current/Intensity (Global_intensity)

      Therefore, if we know the active power and voltage, we can directly calculate the intensity. (Note: If we didn't know that we could analyze relationships - e.g. by creating a correlation matrices)

    • Derive time-based features to capture usage patterns: hour, day, month
    • Use sub_metering readings for areas/appliances
  3. Model Selection & Evaluation
    • Regression for real valued target
    • Compare muliple models
Setup
  1. Install required packages (scikit-learn, pandas, numpy, matplotlib, seaborn)
  2. Update the file path in the code to match your data file location
  3. Optional: If running in Colab with Google Drive as the data file location, add this as first cell and replace tonia with the folder the data file is in:
    # Mount Google Drive
    from google.colab import drive
    drive.mount('/content/drive')
    basedir = '/content/drive/MyDrive/tonia'

    # Magic command
    %matplotlib inline
Code
import pandas as pd
import numpy as np
from sklearn.model_selection import train_test_split
from sklearn.preprocessing import StandardScaler
from sklearn.linear_model import LinearRegression
from sklearn.metrics import mean_squared_error, r2_score
import matplotlib.pyplot as plt
import seaborn as sns
from sklearn.ensemble import RandomForestRegressor

def get_data():
    # Load data
    df = pd.read_csv('household_power_consumption.txt', sep=';',
        na_values=['?']
    )

    # Preprocess
    df = df.dropna()
    df['datetime'] = pd.to_datetime(
        df['Date'] + ' ' + df['Time'],
        format='%d/%m/%Y %H:%M:%S'
    )
    df = df.drop(['Date', 'Time'], axis=1)
    df['hour'] = df['datetime'].dt.hour
    df['day'] = df['datetime'].dt.dayofweek
    df['month'] = df['datetime'].dt.month

    return df

def analyze_relationships(df):
    # Calculate correlations
    correlations = df[['Global_intensity', 'Global_active_power',
        'Global_reactive_power', 'Voltage']
    ].corr()

    # Plot correlation matrix
    plt.figure(figsize=(10, 8))
    sns.heatmap(correlations, annot=True, cmap='coolwarm', vmin=-1, vmax=1)
    plt.title('Correlation Matrix of Power Measurements')
    plt.show()

    # Scatter plot of Active Power vs Intensity
    plt.figure(figsize=(10, 6))
    plt.scatter(df['Global_active_power'], df['Global_intensity'], alpha=0.1)
    plt.xlabel('Global Active Power (kW)')
    plt.ylabel('Global Intensity (A)')
    plt.title('Active Power vs Intensity')
    plt.show()

def train_model(X, y):
    # Split data
    X_train, X_test, y_train, y_test = train_test_split(
        X, y, test_size=0.2, random_state=42
    )

    # Scale features
    scaler = StandardScaler()
    X_train_scaled = scaler.fit_transform(X_train)
    X_test_scaled = scaler.transform(X_test)

    models = {
        'Linear Regression': LinearRegression(),
        'Random Forest': RandomForestRegressor(n_estimators=100, random_state=42)
    }

    results = {}
    for name, model in models.items():
        # Train model
        model.fit(X_train_scaled, y_train)

        # Make predictions
        y_pred = model.predict(X_test_scaled)

        # Calculate metrics
        mse = mean_squared_error(y_test, y_pred)
        r2 = r2_score(y_test, y_pred)

        results[name] = {
            'model': model,
            'mse': mse,
            'r2': r2,
            'predictions': y_pred,
            'actual': y_test
        }

    return results, scaler, X_test, y_test

def plot_results(results):
    plt.figure(figsize=(15, 10))

    for i, (name, result) in enumerate(results.items(), 1):
        plt.subplot(2, 1, i)
        plt.scatter(result['actual'], result['predictions'], alpha=0.5)
        plt.plot(
            [result['actual'].min(), result['actual'].max()],
            [result['actual'].min(), result['actual'].max()],
            'r--', lw=2
        )
        plt.xlabel('Actual Energy Consumption (Global_intensity)')
        plt.ylabel('Predicted Energy Consumption')
        plt.title(f'{name}\nR² Score: {result["r2"]:.3f}, MSE: {result["mse"]:.3f}')

    plt.tight_layout()
    plt.show()

def feature_importance(results, X):
    # For Random Forest model
    model = results['Random Forest']['model']
    feature_imp = pd.DataFrame({
        'feature': X.columns,
        'importance': model.feature_importances_
    }).sort_values('importance', ascending=False)

    plt.figure(figsize=(10, 6))
    sns.barplot(x='importance', y='feature', data=feature_imp)
    plt.title('Feature Importance in Energy Consumption Prediction')
    plt.show()

    return feature_imp

def main():
    df = get_data()

    # Optional for feature selection
    # analyze_relationships(df)

    # Set features and target
    features = [
        'hour', 'day', 'month',
        'Sub_metering_1', 'Sub_metering_2', 'Sub_metering_3'
    ]

    X = df[features]
    y = df['Global_intensity']

    results, scaler, X_test, y_test = train_model(X, y)
    plot_results(results)

    # Analyze feature importance
    df = feature_importance(results, X)
    print("\nFeature Importance:")
    print(df)

    # Example prediction
    print("\nExample Prediction:")
    sample_data = X_test[:1]
    sample_scaled = scaler.transform(sample_data)

    for name, result in results.items():
        prediction = result['model'].predict(sample_scaled)[0]
        print(f"{name} prediction: {prediction:.2f} kW")
        print(f"Actual value: {y_test.iloc[0]:.2f} kW")

if __name__ == "__main__":
    main()
Output

Feature Importance:
          feature  importance
5  Sub_metering_3    0.483127
3  Sub_metering_1    0.209181
4  Sub_metering_2    0.162645
0            hour    0.083614
2           month    0.040526
1             day    0.020905

Example Prediction:
Linear Regression prediction: 6.75 kW
Actual value: 6.40 kW
Random Forest prediction: 6.21 kW
Actual value: 6.40 kW
Why do we scale?

Scaling features is crucial in regression analysis

The StandardScaler performs standardization by:

Computing mean (μ) and standard deviation (σ) for each feature

Transforming each value using: z = (x - μ) / σ

Without scaling, the larger-range features would inappropriately dominate the model's learning process.

  1. Equal Feature Influence

    • Without scaling, features with larger numeric ranges (like household income: $20,000-200,000) would dominate features with smaller ranges (like number of rooms: 1-10)
    • Scaling ensures each feature contributes proportionally to the model based on its actual importance, not its numerical magnitude
  2. Algorithm Performance

    • Many algorithms (especially gradient-based ones) converge faster with scaled features
    • Linear regression is less affected, but algorithms like gradient descent work better with scaled features
    • Neural networks almost always require scaled features for proper convergence
  3. Mathematical Stability

    • Prevents computational issues with very large or very small numbers
    • Reduces the chance of overflow/underflow errors
    • Helps avoid numerical instability in optimization calculations
  4. Model Interpretability

    • Makes feature importance comparisons more meaningful
    • Coefficients become more directly comparable
    • Easier to understand the relative impact of each feature
